2015 SeaRey LSX conversion

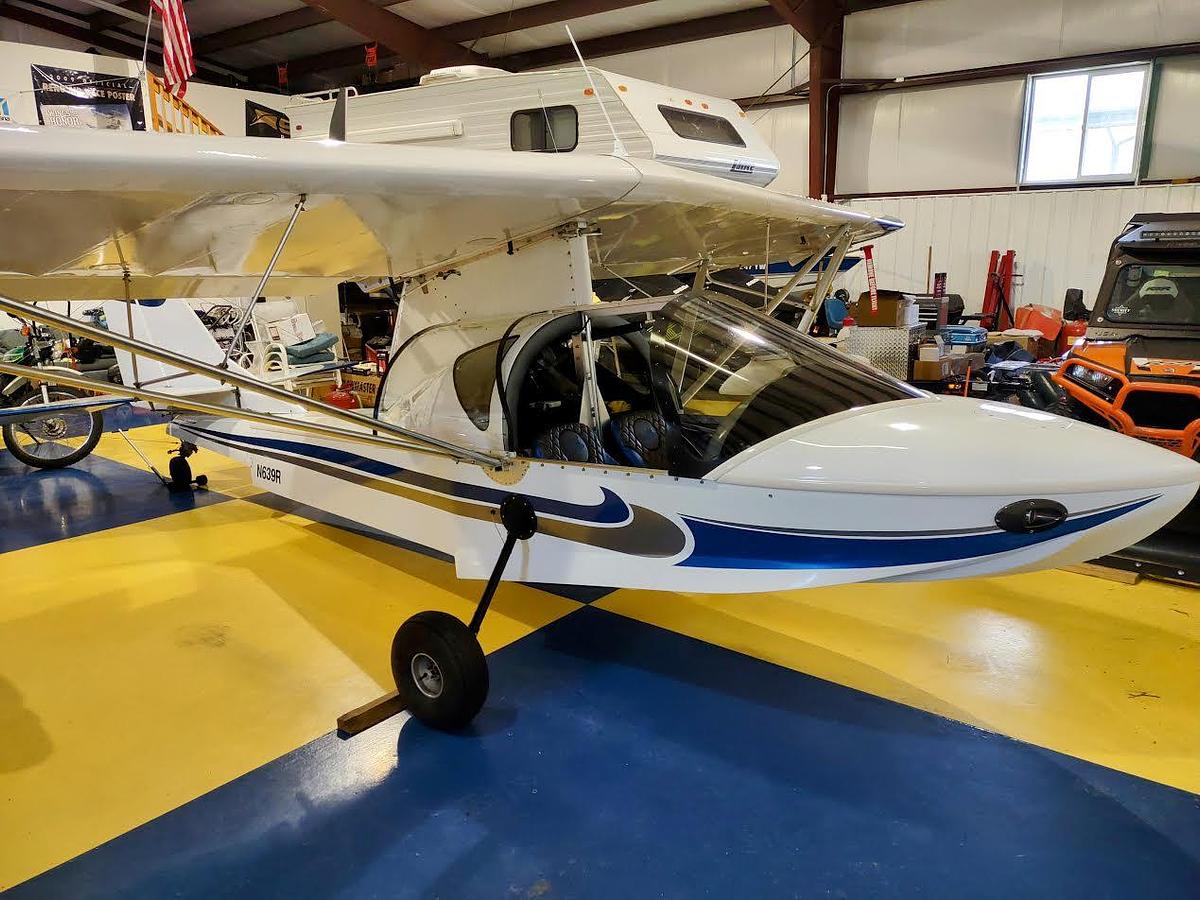

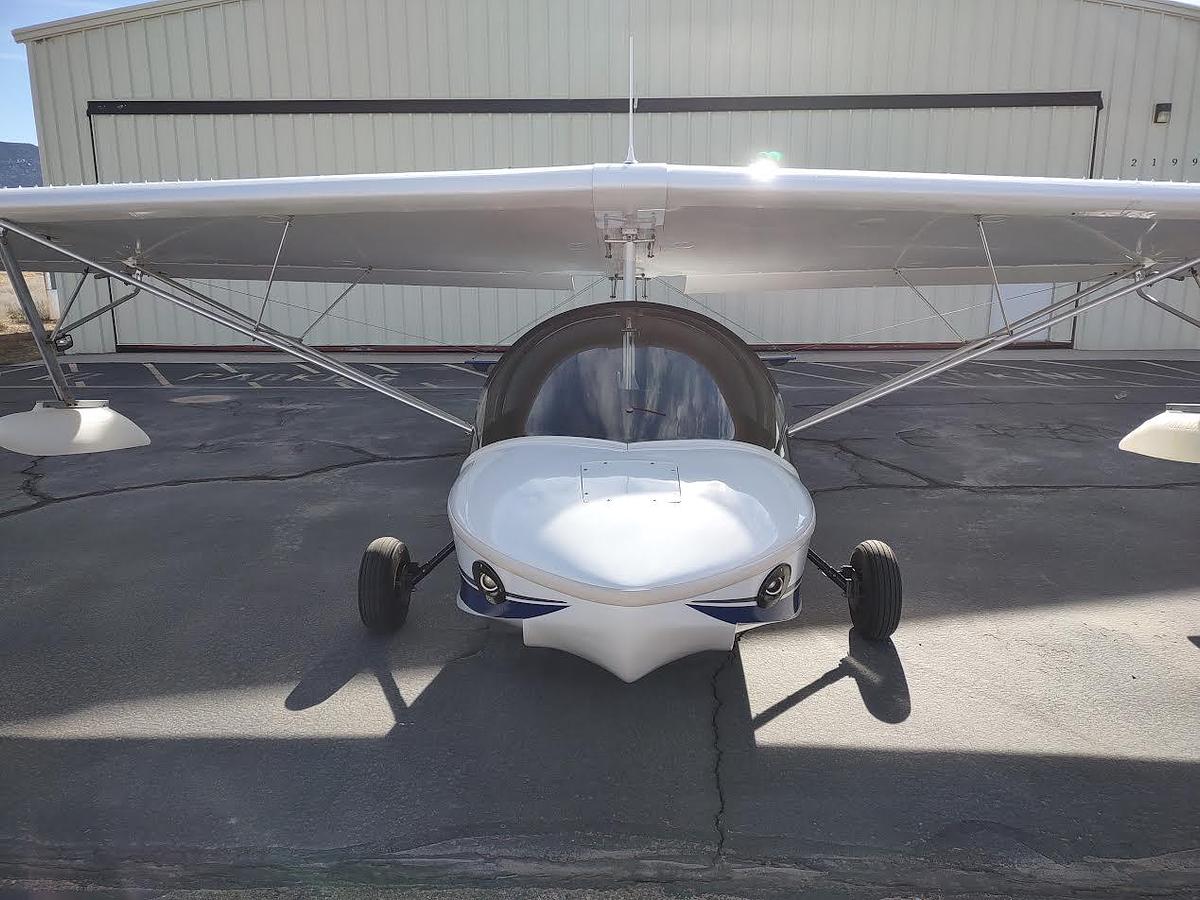

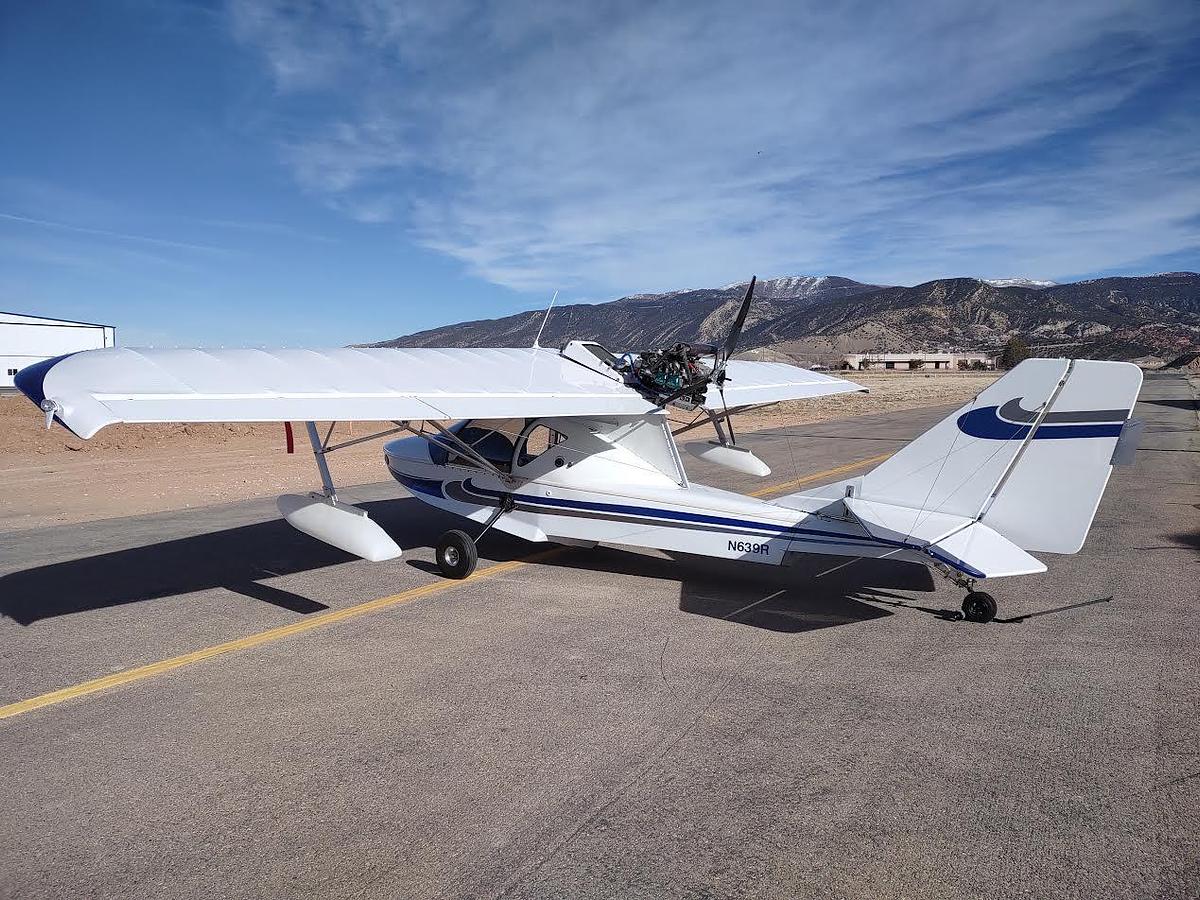

2015 SeaRey LSX Conversion Amphibious Aircraft – Rotax 912ULS – Warp Drive Carbon-Fiber Prop – ADS-B In/Out – 380 Hours

This SeaRey amphibious aircraft was extensively rebuilt and converted to LSX configuration in 2015, creating a highly upgraded two-place aircraft capable of operating from both land and water. The aircraft is listed with approximately 380 hours and has received substantial structural, electrical, avionics, engine, landing-gear, cockpit, and airframe improvements over the course of its ownership.

The aircraft was repainted by Flying Colors in Leesburg, Florida, and more recent improvements include differential hand brakes, a replacement Rotax 912ULS engine, a five-year rubber replacement, and a new Warp Drive carbon-fiber propeller.

Aircraft & LSX Conversion Highlights

SeaRey LSX Conversion / 2015 Rebuild

Amphibious Land & Water Capability

Approximately 380 Hours Listed

Two-Seat Configuration

Retractable Landing Gear

High-Wing Amphibious Design

Pusher-Propeller Configuration

LSX Bulkhead

LSX Tail Strap Support

LSX Rudder Pulley System

LSX Aileron Direct-Drive & Bellcrank Upgrade / Cable Delete

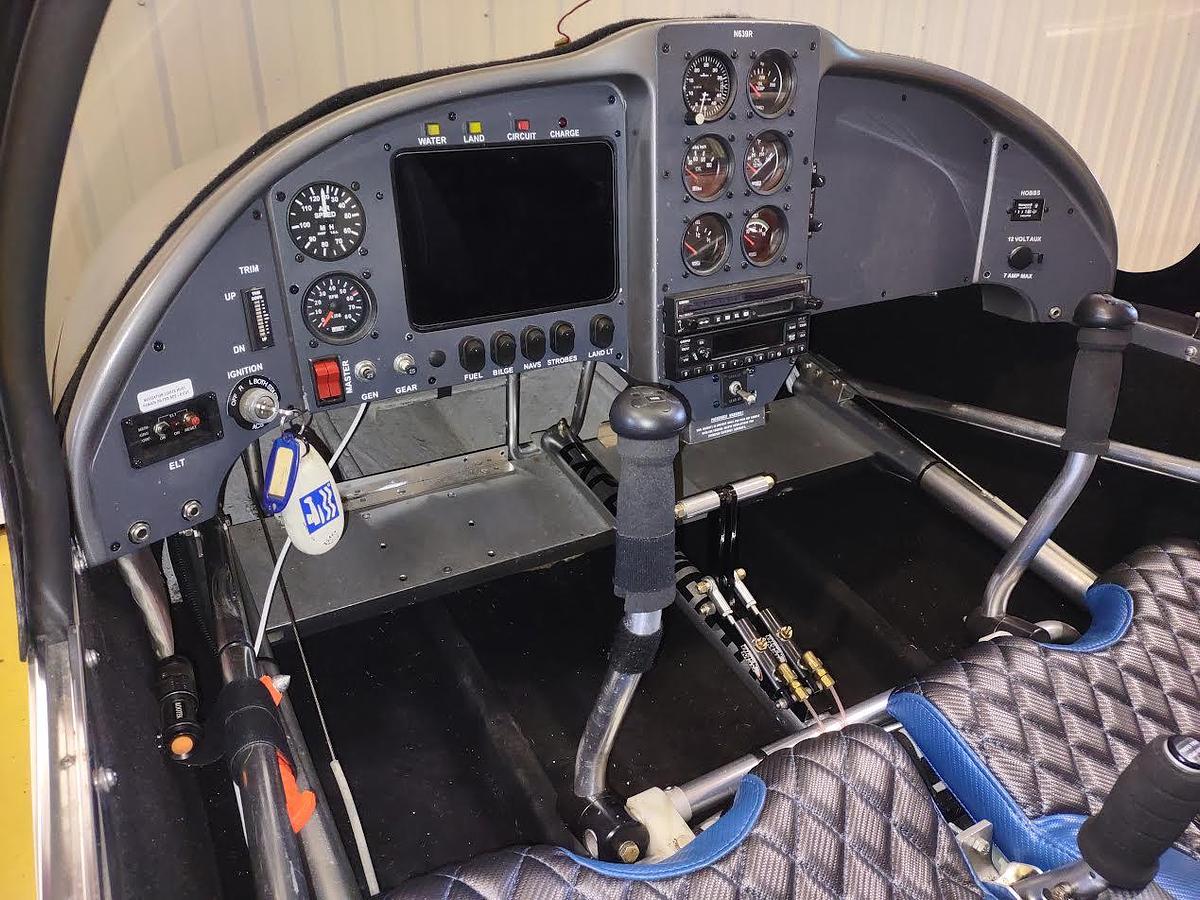

Integrated LSX Instrument Panel

LSX Splash Guard

VGs

Washout Plates

Aft Vertical Pylon Support

Hull Channel Bracket Attachments

Side Hull Reinforcements Around Strut Attachments

Boom Tube Covers

New Wing & Tail Wires / Cables During Rebuild

Wing Mount Yokes

Gear Legs & Spindles

Gear & Transom Boot Seals

Tailwheel Retraction Cable

Tailwheel Extension Cable

Tailwheel Spring

Tailwheel Strut, Pulleys & Associated Hardware

Side Pylon Covers

Fuel Tank Support Angles

Dzus Fasteners on Wing Center Gap Seals

Radiator & Radiator Cowl

Cockpit Tubes

Baggage Decks

All Electrical Wiring Replaced During Rebuild

Engine & Propeller

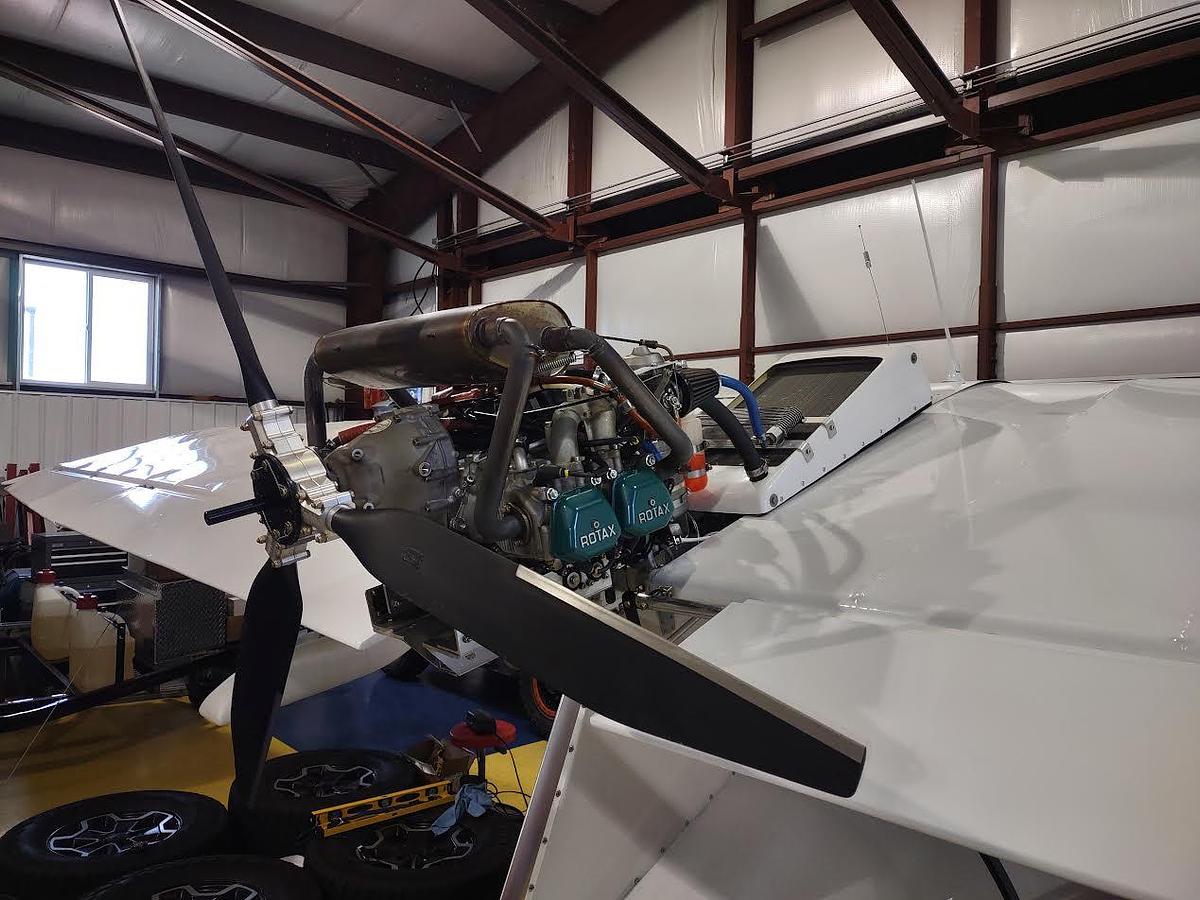

Rotax 912ULS Engine

Replacement Engine Installed August 2023

Current Engine Installed with Approximately 790 Hours Total Time Since New at Time of Installation

Rotax 912ULS 2,000-Hour TBO

Five-Year Rubber Replacement Completed August 2023

Lord Rubber Engine Mounts Included in Rubber Replacement

CKT Exhaust

Tanis Oil Tank Heater

Warp Drive 68" Carbon-Fiber Propeller

Nickel Leading Edges

Propeller New August 2023

The aircraft's previous Rotax 912ULS developed a crankcase crack in June 2023. It was replaced in August 2023 with the current 2010 Rotax 912ULS, serial number 5651827. At installation, the replacement engine had approximately 790 hours total time since new.

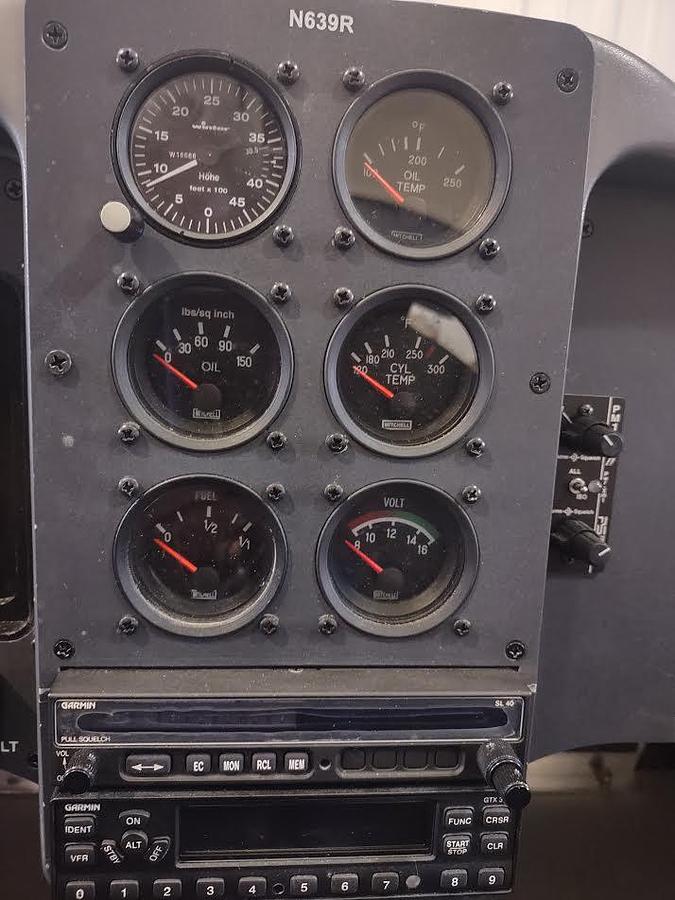

Avionics & Instrumentation

iPad Mini 6

Stratus 3 AHRS / ADS-B In

uAvionix Wingtip ADS-B Out

Garmin SL40 COM

Garmin GTX 327 Transponder

PM Engineering 3000 Intercom

Analog Mitchell Engine & Fuel Gauges

ACI Gear Warning System

ACI Power Management System

Gear Relay Board

12V Power Outlet in Instrument Panel

LED Wing Lights

Cockpit, Controls & Additional Improvements

Differential Hand Brakes Added in 2021

Differential Brakes Replaced Original Single Stick-Mounted Hand Brake

Smoked Windshield & Canopies

Canopy Hardware, Frame Supports, Tracks & Slides Replaced During Rebuild

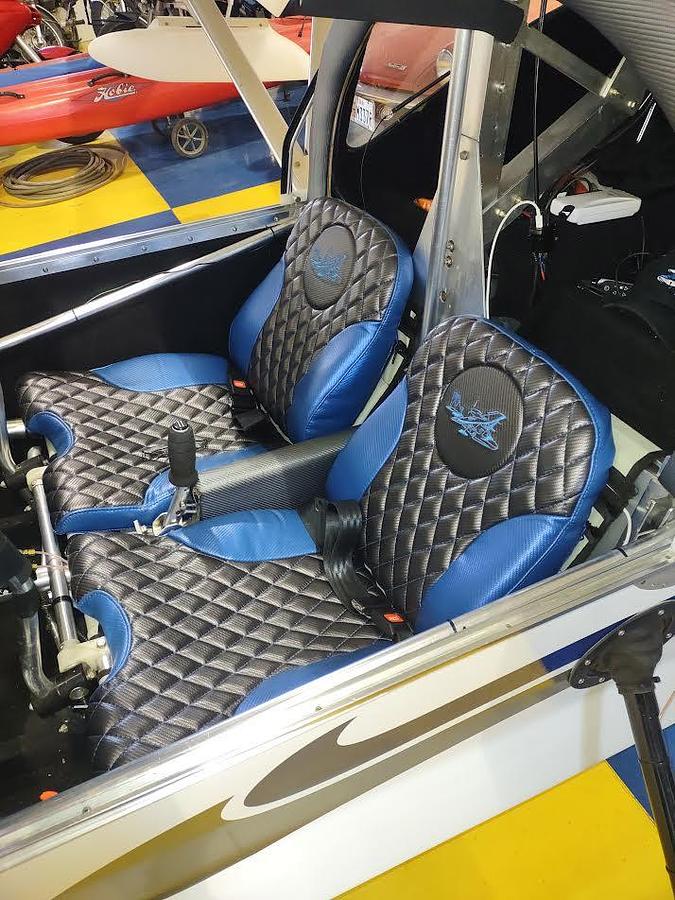

Custom Seats

Custom Headrests

Center Armrest

Carpeted Hull Interior

2015 Rebuild History

The aircraft's documented history states that the original Classic kit was built by Dave Lima in 2011 and later purchased by SeaRey instructor Daniel Myers. After a hard landing damaged the landing gear, the fiberglass hull and wings were reported not to have been damaged.

Angel Rivera, who had approximately 20 years of experience building kits under contract at the factory, was then hired to rebuild the aircraft from the ground up in 2015, with the exception of the wings. The rebuild incorporated numerous LSX components and upgrades throughout the airframe, controls, cockpit, landing gear, electrical system, and supporting structures.

The aircraft also received new DuPont paint over the entire airframe by Flying Colors in Leesburg, Florida.

With its extensive LSX conversion, documented rebuild history, updated Rotax powerplant, newer carbon-fiber propeller, ADS-B capability, differential brakes, and substantial list of structural and systems upgrades, this SeaRey presents a much more complete story than a typical basic amphibious aircraft listing. Its ability to operate from both runways and suitable water surfaces provides the versatility SeaRey aircraft are known for.

Located in Cedar City, UT 84720

For more information, please call 833-265-6113 and mention ID 17328
