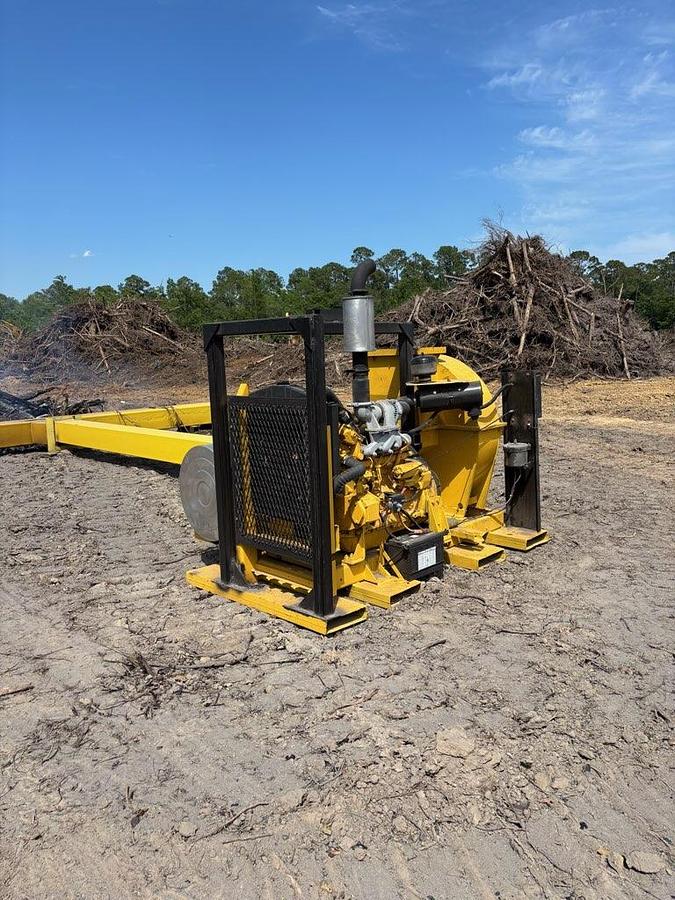

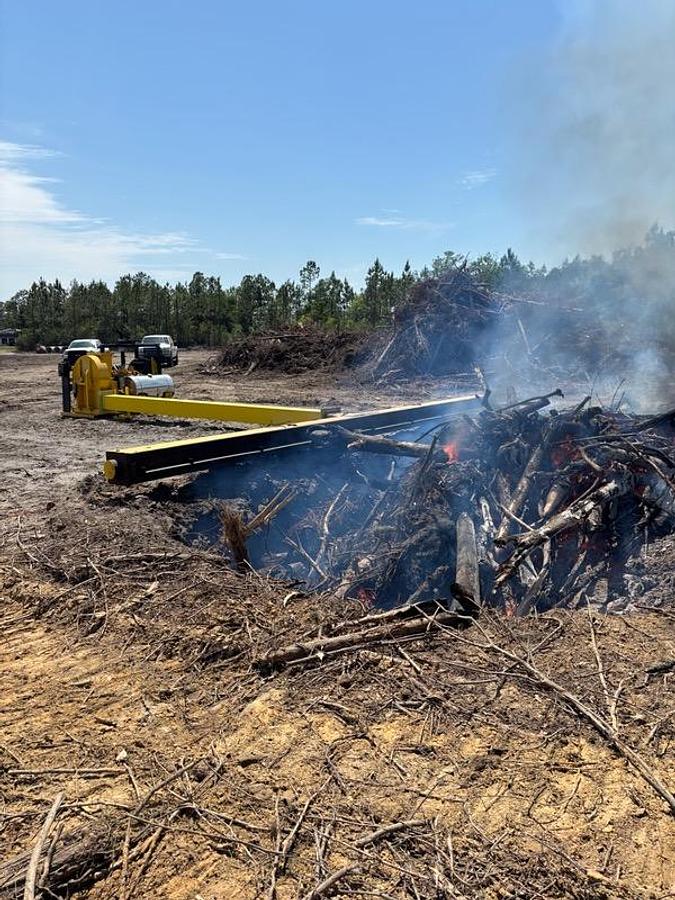

Elgin Air Curtain Trench Burner Incinerator

Elgin Air Curtain Trench Burner Incinerator

Trench burner

Or air curtain incinerator or pit burners

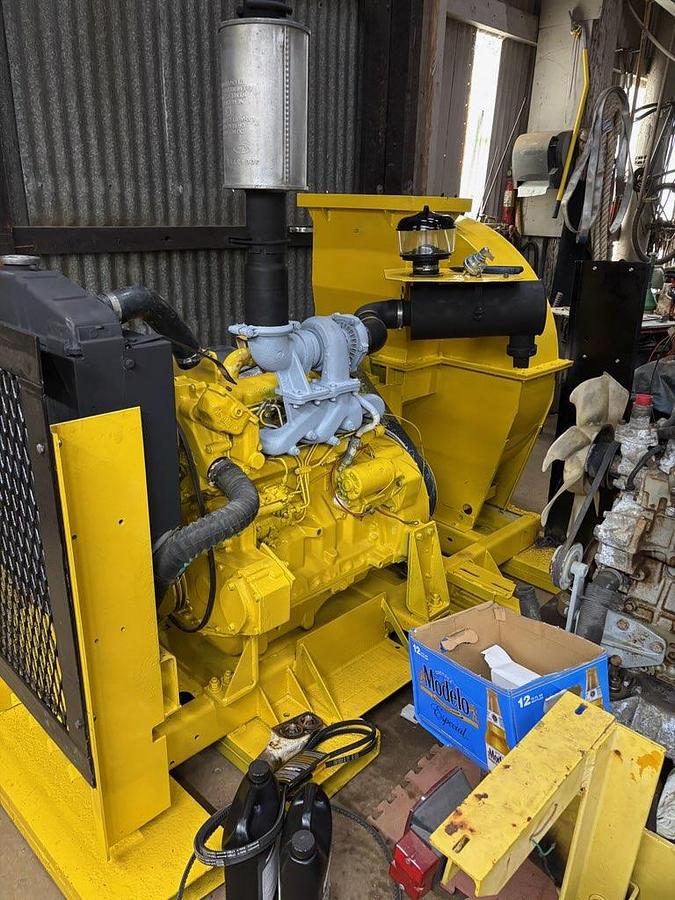

115 hp John Deere 4039

No electronic garbage on engine

It’s in excellent shape no leaks

New one year or 1000 hours warranty on turbo

New warranty on set of injectors

New twin thermostats dual system in case one fails to open

The other thermostat will open & it protects from overheating

plus the

Murphey automatic shutdown panel is new

This unit has all new Murphy panel controls with emergency engine shut down for over heating & low engine oil

It also has a new hour meter with all new gauges including fuel

New alternator

New fuel gauge

No leaks

20,240 CFM

68” water column 2.65psi air pressure

12 to 16 ton per hour of processing dried vegetative debris

Will process more pending type vegetation is being processed

It has over twice the CFM of McPherson trench burner incinerators so it will handle more Debris

Velocity at manifold nozzle is from 18,000 to 20,000 CFM pending RPM’s of unit

This unit has more velocity of mass air PSI coming out the manifold slot to create a stronger air curtain to better incinerate debris with less smoke & cinders

The carrier tube is 20’ 12” x 12” steel air supply plenum weighs

790lbs

The custom 30’ x3/8” heavy wall box tube air manifold with quick connect to the 12” plenum.

No tools required

Will not rust & pit away near as fast as gauge metal air manifolds

We found that the factory manifolds do not hold up they were easily damaged due to thin gage metal

So we built a heavy wall unit

It has a better louver on it to direct the air in a properly sized burn pit

The engine is approx 25’ off set from the burn pit & is much safer than the models that are 8’ off center from the burn pit

It has a 3 to 4 day run time fuel capacity tank 85 gallon tank

Fuel tank has a new fuel gauge

Located in Long Beach, MS 39560

For more information, please call 833-265-6113 and mention ID 11255B
